0.08

Buttercrambe

Derwent
Derwent catchment • Buttercrambe • North Yorkshire • ID: F2807 • Level
(21m ago) • 1 reading/hr • 173 views

Set water level alerts

Get notified about Buttercrambe — tick as many as you like, they all share the notify settings below.

Unusual rise FloodRadar+Top 1% rise rate for this gauge.
Drag the line on the chart, or type a value: m
Quick pick:

Each one is saved as its own alert — pause or remove them individually any time.

Not an emergency service — if in danger call 999. Alerts rely on EA/SEPA data and are best-efforts. Terms

Current Level
0.081 m
▬ Steady
24h Max
0.090 m
24h Min
0.080 m
Typical Range
0.28 - 1.20
m
Highest Recorded
2.57 m
9 Nov 2000
Since Sep 1973
Current level is 3% of this
🚽 Sewage overflows nearby

Recent Water Levels

🌍 floodradar.co.uk
1 day

Recent Readings

Steady over 6h
23 Aug 22:45 ▬ steady 0.081 m
23 Aug 21:30 ▬ steady 0.081 m
23 Aug 21:15 ▲ +0.1 cm 0.081 m
23 Aug 21:00 ▼ -0.1 cm 0.080 m
23 Aug 20:45 ▲ +0.1 cm 0.081 m
23 Aug 20:30 ▼ -0.1 cm 0.080 m
23 Aug 20:15 ▬ steady 0.081 m
23 Aug 20:00 ▬ steady 0.081 m
23 Aug 19:45 ▬ steady 0.081 m
23 Aug 19:30 ▬ steady 0.081 m
23 Aug 19:15 ▬ steady 0.081 m
23 Aug 19:00 ▲ +0.1 cm 0.081 m
23 Aug 18:45 ▼ -0.1 cm 0.080 m
23 Aug 18:30 ▬ steady 0.081 m
23 Aug 18:15 ▬ steady 0.081 m
23 Aug 18:00 ▬ steady 0.081 m
23 Aug 17:45 ▼ -0.1 cm 0.081 m
23 Aug 17:30 ▼ -0.1 cm 0.082 m
23 Aug 17:15 ▲ +0.1 cm 0.083 m
23 Aug 17:00 0.082 m

Rainfall & Weather

Loading rainfall and weather data...

Flood history near this gauge

Official Environment Agency warnings issued since 2010 for the 4 flood areas linked to this gauge (nearest 0.3 km away).

85flood warnings 0flood alerts

Most recent flood warning: 13 Feb 2026River Derwent at Stamford Bridge - The Weir Caravan Park and Kexby Bridge

Year by year
YearWarningsAlerts
2026 5 0
2025 7 0
2024 5 0
2023 12 0
2022 1 0
2021 20 0
2020 3 0
2019 6 0
2018 4 0
2016 3 0
2015 2 0
2013 4 0
2012 11 0
2011 1 0
2010 1 0

Warnings apply to a whole flood area, not necessarily this exact spot. Years before 2006 aren't covered by the EA's historic record. See also the Buttercrambe flood history.

Nearby Stations

Loading nearby stations...

Station Details

  • Station Reference: F2807
  • EA Gauge ID: F2807-level-stage-i-15_min-m
  • Parameter: Level
  • Unit: m
  • Typical rise rate: 2 cm/hr (p95 sustained over 90 days)
  • Typical data delay: ~22 min (measured reading→publication lag)
  • Tidal: No
  • Lock / structure: No
  • Catchment Area: Derwent
  • Typical Range: 0.277 – 1.200 m
  • Drainage Area: 1,586 km² upstream of this gauge
  • Flow Data: Available (m³/s) via EA Hydrology
  • EA Cross-check: 0.08 m (EA at 23 Aug 22:15)
  • Flow Archive: National River Flow Archive ↗

Geographic coordinates may reflect the access point for the gauge, and not the precise location in the watercourse that it is taking readings from.

Catchment Character

🌊 Mixed response A balance of quick runoff and slower groundwater baseflow.

Your catchment is all the land that drains rainfall into the river above this gauge. Its character — how steep, wet, wooded, urban or chalky that land is — decides how fast rain here turns into a rising river. A steep, bare or clay catchment is “flashy” (rises and falls quickly, floods easily); a flat, chalk or well-wooded one is slow and steady. The tiles below put numbers to that; the flow-duration curve reads left-to-right from the river’s typical high flows (Q5) down to its low flows (Q95) — a steep curve means a flashy river.

The physical character of the land that drains to this gauge, and how it shapes its flood response — from the National River Flow Archive (UKCEH).

Baseflow Index
0.61
mixed response
Avg Annual Rainfall
833 mm/yr
1991–2020 · +6% since 1941–70
Urban Extent
0.8%
largely rural
Median Annual Flood
71.52 m³/s
QMED — typical yearly peak flow
Highest Recorded Flow
140 m³/s
9 Nov 2000
Flow-Duration Curve
mean 17.1247.4012.304.395% (high)% of days exceeded95% (low)
Daily flow (m³/s) exceeded each % of the time — a steep curve is flashy, a flat one is steady. Q5 high · Q50 median · Q95 low.
Land Cover (2023)
Woodland 16%Grassland 32%Arable 36%Heath/scrub 14%Urban 2%
Grassland 28% → 32% since 1990

Flow affected by: reservoir influence, public water supply, industrial / agricultural abstraction.

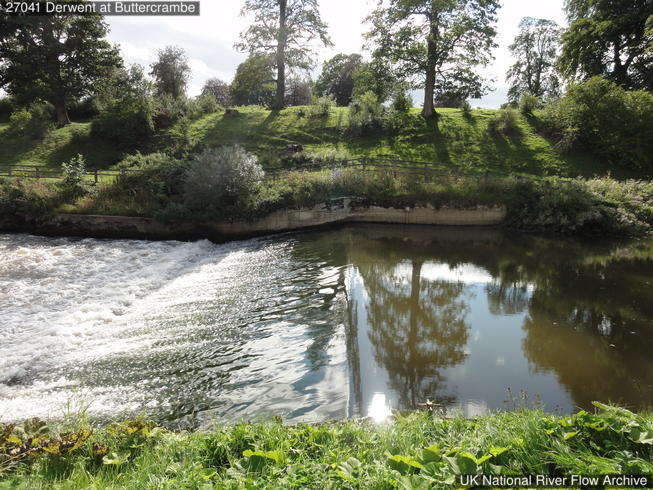

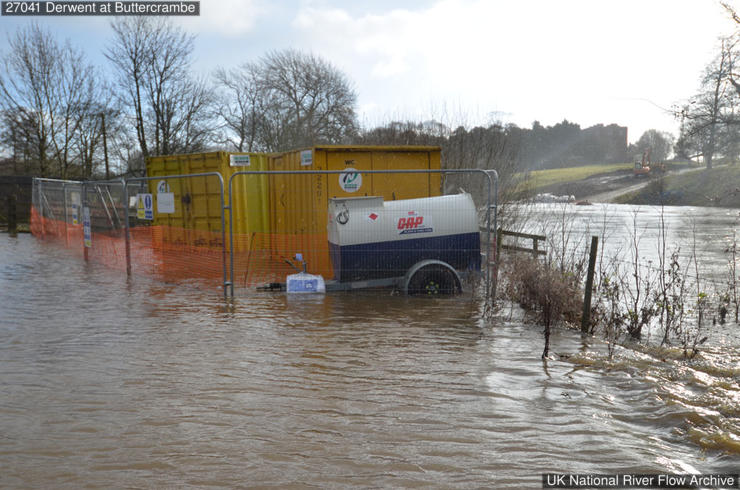

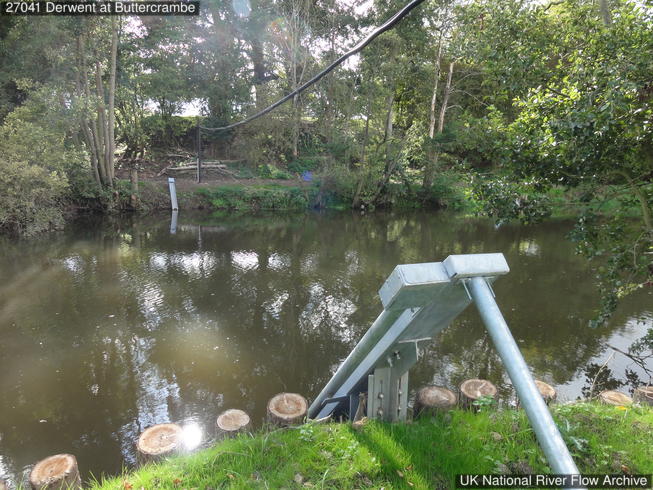

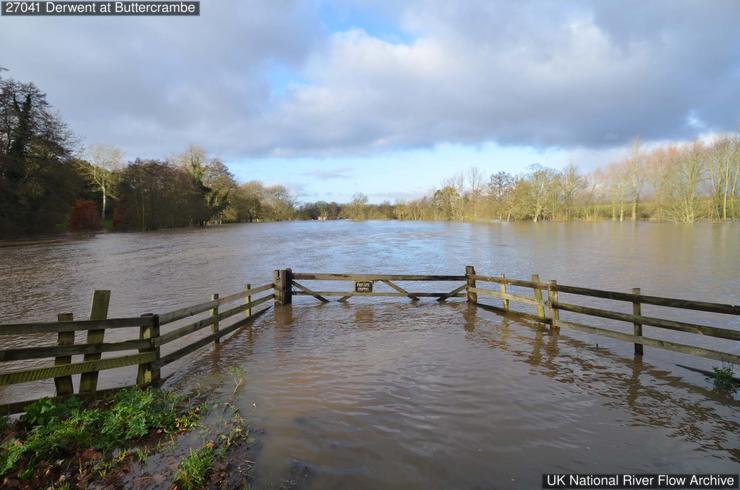

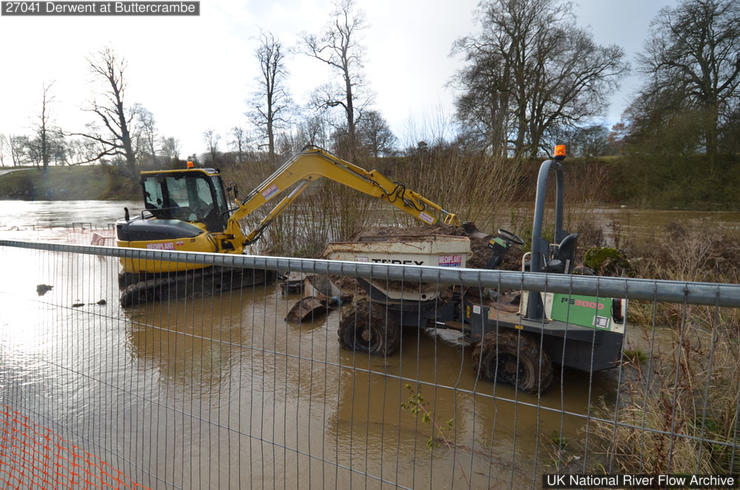

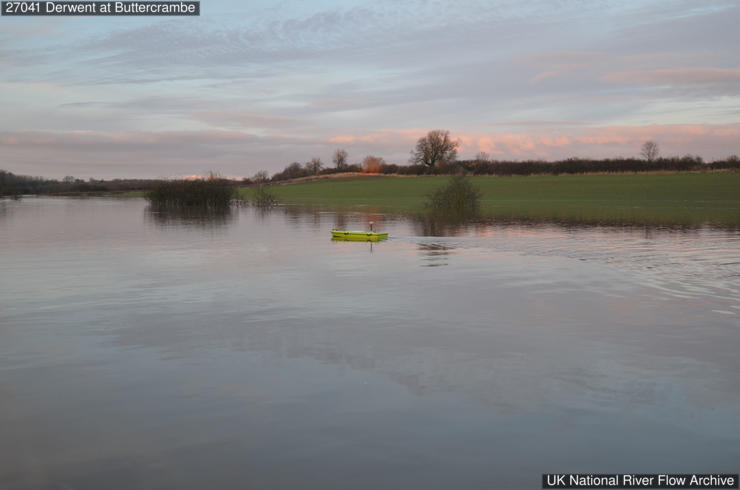

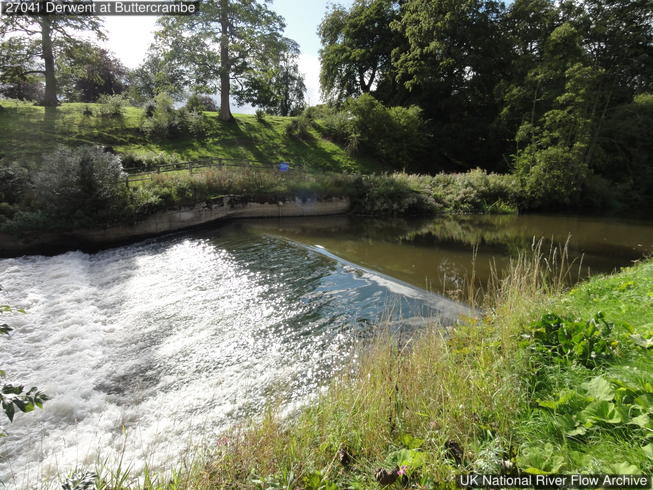

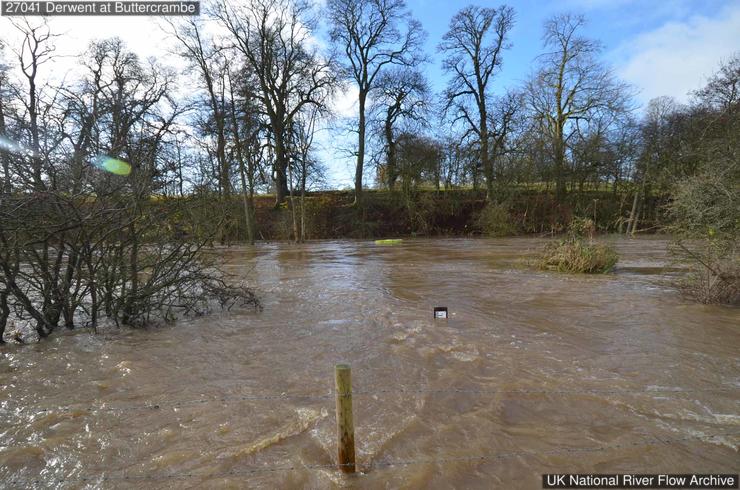

Photos

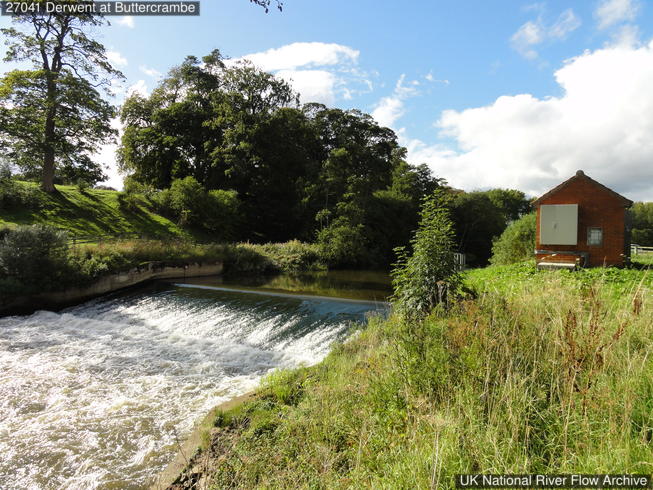

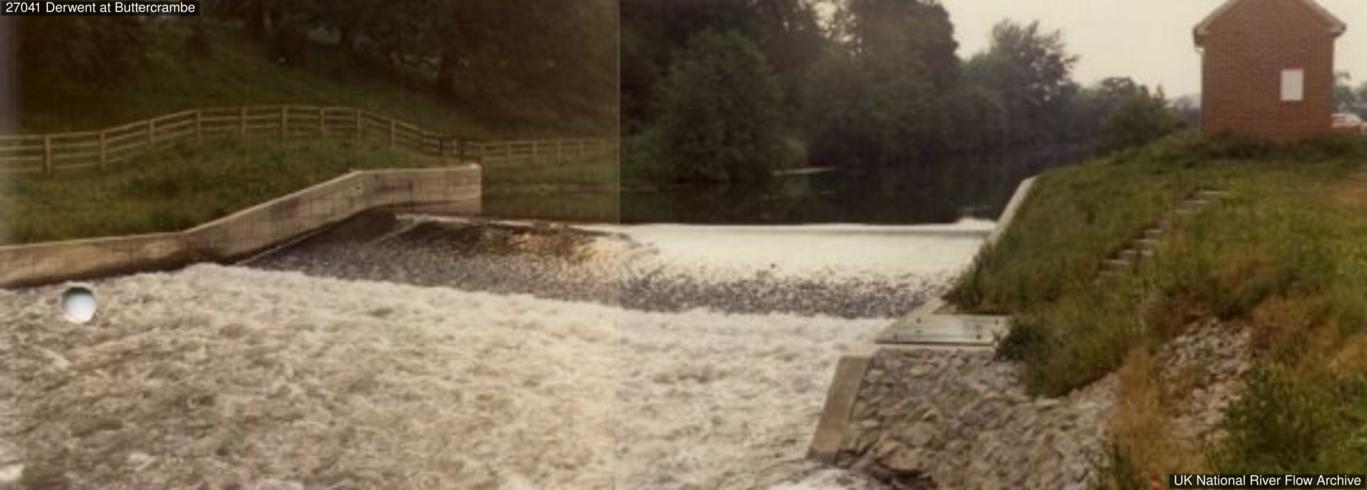

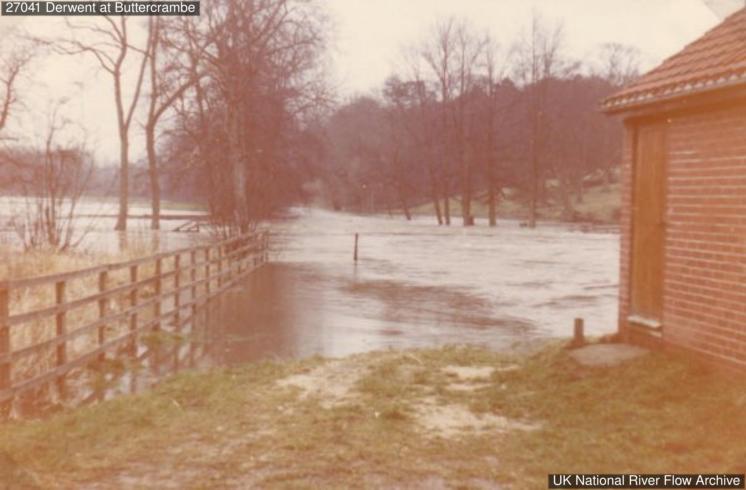

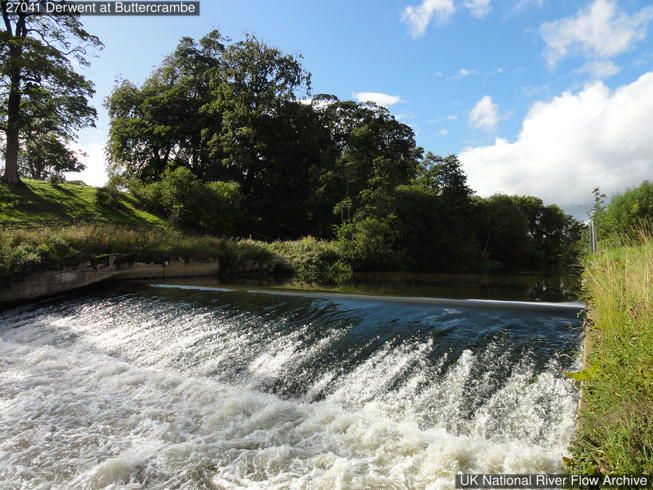

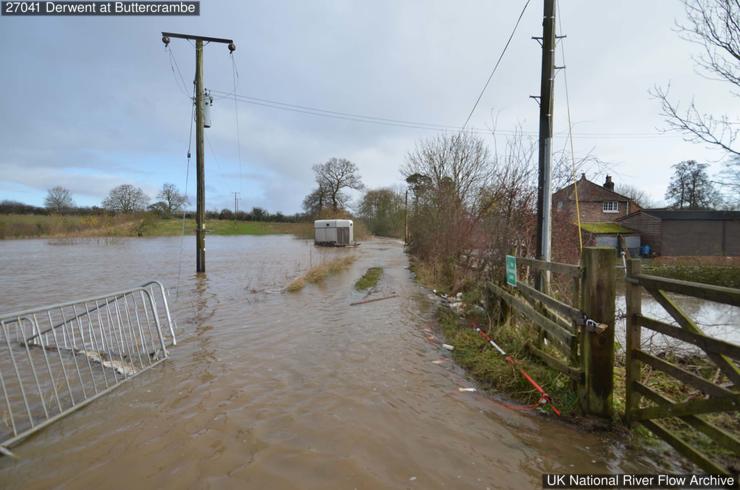

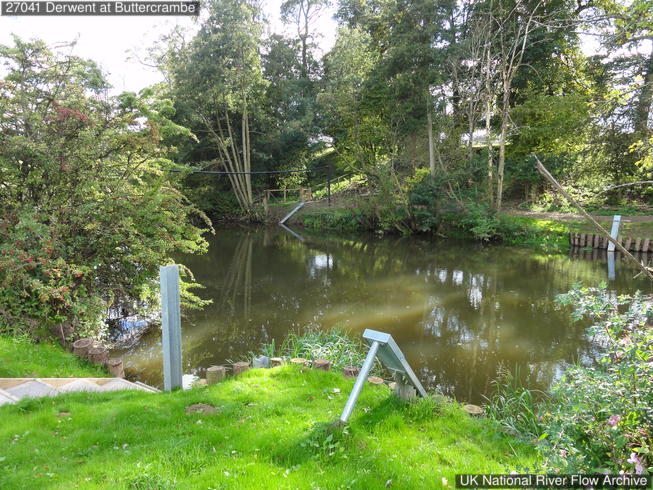

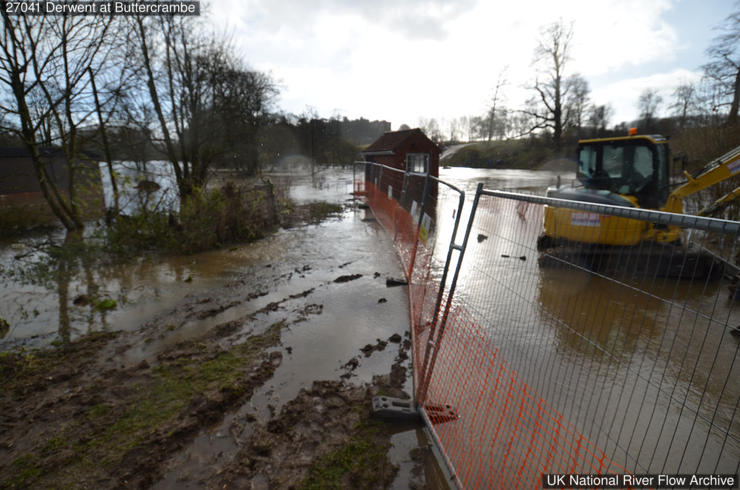

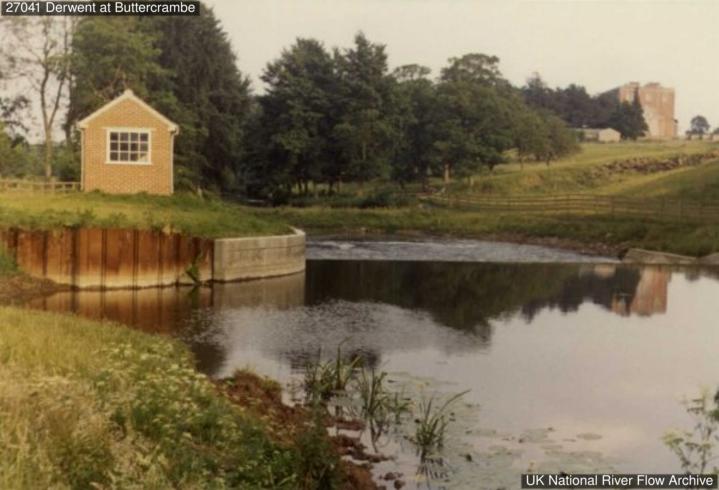

Gauging-station photographs from the National River Flow Archive (UKCEH).

Photos © NRFA / UKCEH & the measuring authority — shown at web resolution. Full gallery on the NRFA ↗

About this gauge

Crump weir installed 1973 with ultrasonics since 2001. Replaces 27015. Poor flow correlation between the two sites.

More detail

The catchment

Mixed geology. Limestones and sandstones bordering the Vale of Pickering; Oxford Clay, shale and sandstone to the north, and sands, clay and gravels in the Vale of Pickering. Rural catchment - moorland and forestry dominate in northern headwaters which drain North York Moors. Arable significant in south. No known catchment changes.

The station

Crump weir (20m wide) installed September 1973. Station replaces 27015 which had poor quality data. Crump weir supplemented by in-line path ultrasonic gauge for high flow measurement from 9-11-2001. Peak flows from the headwaters are diverted down the Sea Cut (27033). All data for this site is held against this station number. Larinier fish pass built adjacent to weir in 2013 and hydro-electric turbine installed in 2017. Crossed-path multi-path ultrasonic gauge installed 70m upstream of the weir in 2011, this replaces measurement at the weir from 2013.

How it measures flow

Crump weir formula accounts for non-modular flow at approx 55 cumecs (1.2m). This was verified using gaugings and ultrasonic flow data. The weir drowns at approximately 1.2m, and is overtopped on the left bank above 1.9m - this may lead to an under-estimation of flows. However, this is small and extrapolation is appropriate. A bund upstream ensures floodplain storage returns through section but flows over 1.9m bypass along a vehicle track and return downstream of the station. The bypassing was estimated to be around 50-60 cumecs in 2000. Peak flow rating derived from gaugings, including two from November 2012 which also included measure of bypass flow and confirm rating extrapolation is good. Single path ultrasonic gauge replaced by crossed-path multi-path gauge in 2011, which measures flows up to 1.9m, but some bypassing occurs above this.

Flow regime

Catchment shows a slow hydrological response and includes a groundwater component with considerable flood plain storage. Peak flows from the headwaters u/s of Forge Valley (approximately 6.5% of the catchment) are diverted down the Sea Cut (27033). Minor net impact of artificial influences (spray irrigation is appreciable).

The flow record

Pre-October 1973 data (monthly only) of poorer quality; derives from 27015. Overlap between data at 27041 and 27015 is limited and the flow correlation disappointing. Structure drowned and bypassed in March 1999 & Nov 2000 floods but rating extrapolation does allow for this. Gap in ultrasonics record 4/11/2002 to 30/09/2003. Ultrasonic gauge replaces rated flows from May 2013. Full period of record peak flow data reviewed and released in October 2018 (WINFAP Files v7).

Descriptions from the National River Flow Archive (UKCEH). NRFA station record ↗

Gauge Details

How this gauging station is built and how long it has measured (NRFA / UKCEH).

Gauge type
Crump weir
Operating since
1973
Station datum
9.5 mAOD
Flow record
1973–2024 · 51 yrs · 100% complete
Peak-flow record
since 1973
Hydrometric area
27
Measured by
Environment Agency

Frequently asked questions

Is the River Derwent at Buttercrambe flooding today?

The current level is 0.08m, which is below the typical range. Flooding is very unlikely at this level.

Is the river level rising or falling at Buttercrambe?

Based on the most recent readings, the level is currently steady. The chart above shows the last 7 days of measurements, updated roughly every 15 minutes.

What is a normal level for the River Derwent at Buttercrambe?

The typical range at this station is 0.28m to 1.20m, based on Environment Agency historical data. Levels above 1.20m are higher than usually seen and may indicate a flood risk.

How often is this river level data updated?

Readings are taken by the Environment Agency gauge roughly every 15 minutes and FloodRadar refreshes its data continuously, so the level shown is normally less than an hour old.
