Current Level
0.235 m
▬ Steady
24h Max
0.246 m
24h Min
0.231 m
Typical Range
0.25 - 1.60
m
Highest Recorded
3.73 m
EA official record
3.73 in our data (since Jan 1962)
Current level is 6% of this
🚽Sewage overflows nearby
Recent Water Levels
🌍 floodradar.co.uk
1 day
EA forecast (official)
Flood predictions aren't generated for
lock / structure gauges —
their levels are driven by gate operation,
not by catchment rainfall, so the forecast models would have no skill here.
River Flow
90 days
Daily mean discharge (m³/s) with the daily min–max band, from the EA Hydrology API. Flow is the volume of water passing the gauge — often a more direct flood signal than level.
Flow Data: Daily mean flow (m³/s) to 7 Oct (2 days behind — the EA publishes each day's mean a day or two after it ends; unchecked, provisional)via EA Hydrology
Storm overflows whose water reaches this gauge on the mapped river network, nearest first by distance along the river. The status is each water company's monitor: it says whether an overflow is discharging, not how much or what it contains.
20 storm overflows are traced upstream of this gauge, the nearest 2.1 km away along the river. 0 report discharging now, 20 report not discharging.
South West Water · into Trib Of River Culm · 5.3 km away in a straight line · no mapped watercourse close enough to be sure
54 spills · 311 hours in 2025
Not discharging now · last
3 other overflows within 6 km are downstream of this gauge or on another branch of the river network, so they are not listed.
These are the water companies' monitor statuses; a spill does not by itself explain a change in the gauge level. River connections and distances are traced on OS Open Rivers (edition 2026-04), which leaves out many small channels. Explore the sewage map →
In a typical year this gauge reaches its typical high of 1.60 m
on about 11 days.
This year so far: 13 days.
202613 days, 10 of them high · 10 highso far
202512 days, 8 of them high · 8 high
202422 days, 14 of them high · 14 high
202319 days, 12 of them high · 12 high
20227 days, 3 of them high · 3 high
202110 days, 6 of them high · 6 high
202010 days, 6 of them high · 6 high
20196 days, 3 of them high · 3 high
201813 days, 4 of them high · 4 high
20171 day
Counted from each day's highest reading. Days with missing or implausible readings are left out.
The darker part is days above 1.96 m, the level this gauge tops only a few days a year.
Flood history near this gauge
Official Environment Agency warnings issued since 2006 for the 6 flood
areas linked to this gauge (nearest 1.2 km away).
Warnings apply to a whole flood area, not necessarily this exact spot. Years before 2006 aren't covered by the EA's historic record.
See also the Cullompton flood history.
Flood areas linked to this gauge
Flood warnings and alerts are issued for whole areas. These are the 6 areas linked to this gauge, nearest first.
🌊 Mixed responseA balance of quick runoff and slower groundwater baseflow.
Your catchment is all the land that drains rainfall into the river above this gauge. Its character — how
steep, wet, wooded, urban or chalky that land is — decides how fast rain here turns into a rising river. A steep, bare or clay
catchment is “flashy” (rises and falls quickly, floods easily); a flat, chalk or well-wooded one is
slow and steady. The tiles below put numbers to that; the flow-duration curve reads left-to-right
from the river’s typical high flows (Q5) down to its low flows (Q95) — a steep curve means a flashy river.
The physical character of the land that drains to this gauge, and how it shapes its flood response — from the National River Flow Archive (UKCEH).
Baseflow Index
0.59
mixed response
Avg Annual Rainfall
1,048 mm/yr
1991–2020 · +5% since 1941–70
Urban Extent
1.4%
largely rural
Median Annual Flood
71.25 m³/s
QMED — typical yearly peak flow
Highest Daily Mean Flow
83.90 m³/s
21 Nov 2012 · daily mean, not the instantaneous peak
Flow-Duration Curve
Daily flow (m³/s) exceeded each % of the time — a steep curve is flashy, a flat one is steady. Q5 high · Q50 median · Q95 low.
Shallow V weir built in 1972 to replace previous velocity-area section with cableway.
More detail
The catchment
Rises in the Blackdown Hills. Headwaters drain Greensand and Gault Clay. Predominantly Permo-Triassic sandstones, breccias and marls with extensive valley gravels and alluvium. The catchment has a subdued relief and is predominantly agricultural; the largest settlement is Cullompton. Small areas of woodlands in the east. No major catchment changes.
The station
Originally a velocity-area station with a cableway, reliable records began in 1962. The river was regraded and downstream obstructions were removed in August 1965. Station rebuilt between 1971 and 1973, and during this period a temporary recorder was installed downstream. New weir fully operative from 08/1973 - an informal shallow V weir, 11.45 m overall width, 1:26 side slopes, 1:18 u/s and d/s slopes.
How it measures flow
Weir acts as a low flow control, with channel control when structure is drowned. Full range. Widespread upstream inundation during floods. Multiple peak flow ratings across period of record. Ratings extended to include modelled out-of-bank flows. Bypassing probably occurs at about 2 m, u/s on the left bank, and the station is likely to be outflanked at any stage greater than 2.3 m. Shoal development has led to a number of ratings across period of record, with different low flow limbs. High flow limbs very similar, so simplified rating record applied to data. Current rating uses hydraulic modelling to extend beyond gauged range. Some out of bank gaugings help validate rating. Ratings for velocity-area station derived from gaugings, with some slope-area estimates above bankfull. Upper segment of rating for the temporary recorder 1971-73 derived by correlation between the sites.
Flow regime
Runoff reduced by public water supply abstraction. Runoff influenced by groundwater abstraction/recharge. Runoff increased by effluent returns. Runoff reduced by industrial/agricultural abstraction. Moderate surface and groundwater abstractions affect low flows.
The flow record
Shoaling on structure may affect flows from 1998 until river bed re-profiling in 2008, despite rating adjustments. Full period of record peak flow data reviewed and released in September 2023 (WINFAP Files v12).
How this gauging station is built and how long it has measured (NRFA / UKCEH).
Gauge type
Gauging structure
Operating since
1962
Station datum
44.0 mAOD
Flow record
1962–2024 · 62 yrs · 100% complete
Peak-flow record
since 1962
Hydrometric area
45
Measured by
Environment Agency
Nearby Groundwater
Soil Moisture
Frequently asked questions
Is the River Culm at Woodmill flooding today?
The current level is 0.24m, which is below the typical range. Flooding is very unlikely at this level.
Is the river level rising or falling at Woodmill?
Based on the most recent readings, the level is currently steady. The chart above shows the last 12 hours of measurements by default (up to 7 days), updated roughly every 15 minutes.
What is a normal level for the River Culm at Woodmill?
The typical range at this station is 0.25m to 1.60m, based on Environment Agency historical data. Levels above 1.60m are higher than usually seen and may indicate a flood risk.
How often is this river level data updated?
Readings are supplied by the Environment Agency gauge. FloodRadar checks for updates roughly every 15 minutes; the timestamp above shows how recent the latest available reading is.
Embed this gauge on your website
Free live river-level widget — ideal for parish councils, angling clubs and local sites. Updates automatically.
Preview
📮 Flood risk by postcode near this gauge
Postcodes within 5 km with properties in the Environment Agency’s rivers-and-sea flood-risk bands:
FloodRadar
Log inCreate free account

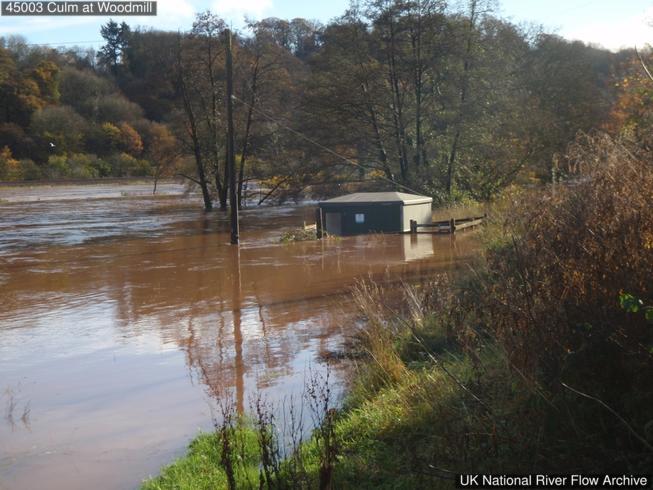

21 Nov 2012 Looking downstream to the hut and overspill. Stage = 3.5m.

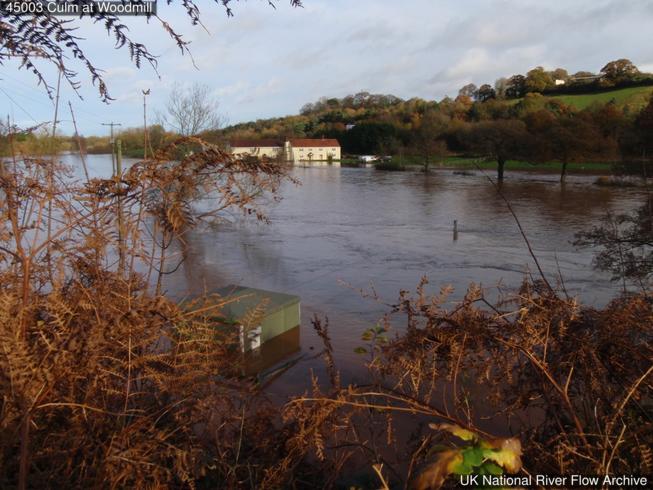

21 Nov 2012 Looking over the hut and left bank overspill. Stage = 3.5m. The cableway tower is on the top of the left hand bank.

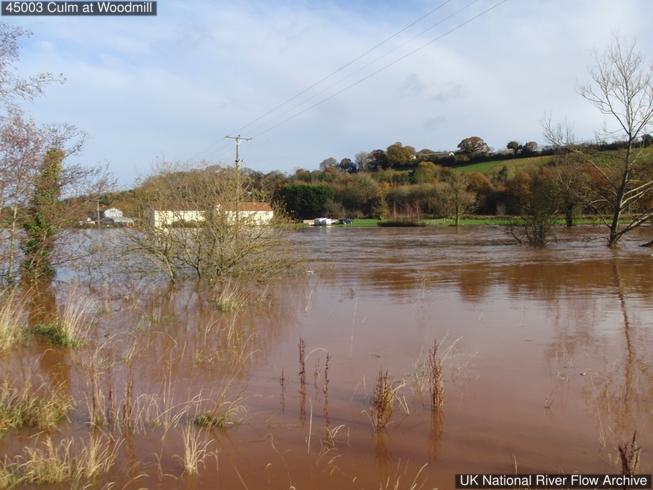

21 Nov 2012 Looking upstream to right bank overspill. Stage = 3.5m.

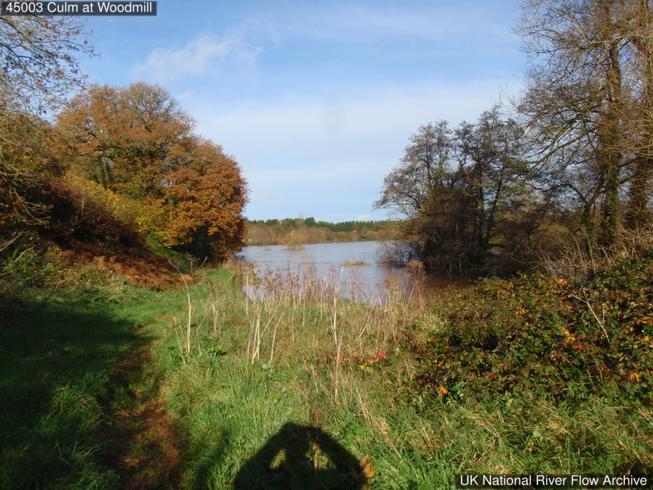

21 Nov 2012 Looking upstream to right bank overspill extent. Stage = 3.5m.

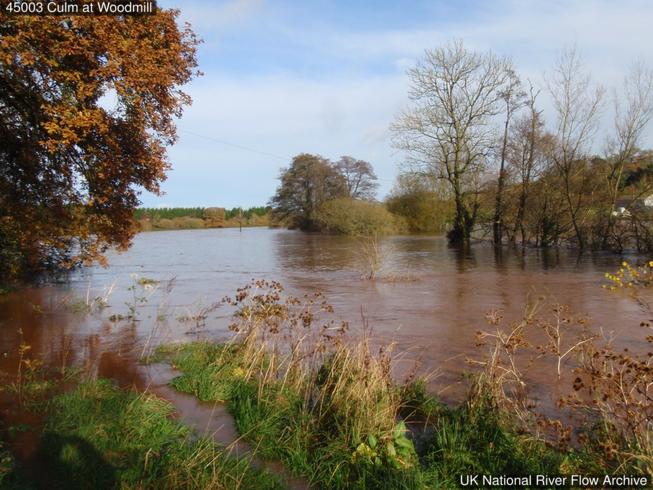

21 Nov 2012 Looking across the river and overspill on left bank. Stage = 3.5m.

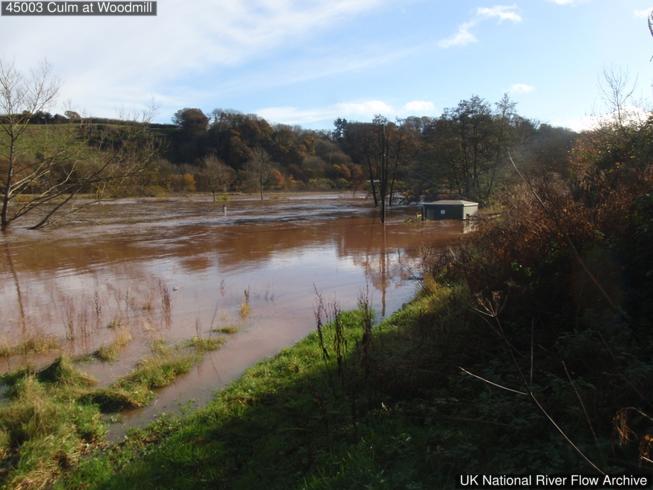

21 Nov 2012 View to the hut from upstream. Stage = 3.5m.
21 Nov 2012 View downstream to hut from right bank. Stage = 3.5m.

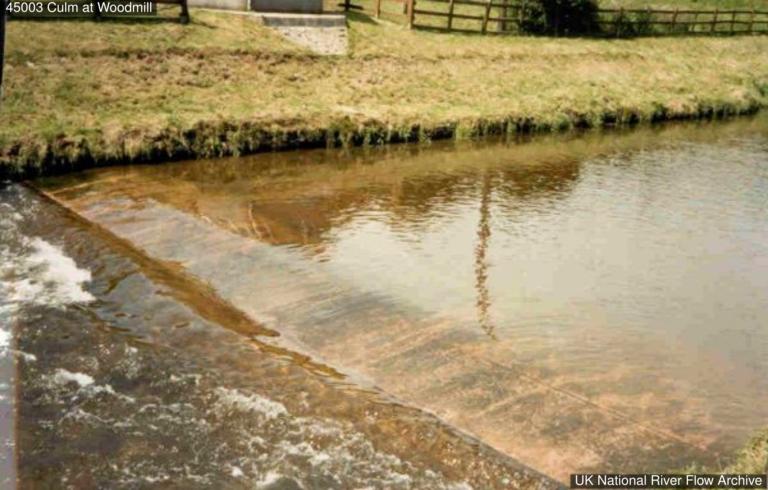

7 Aug 1986 The weir (after shoal removal) during low flows.

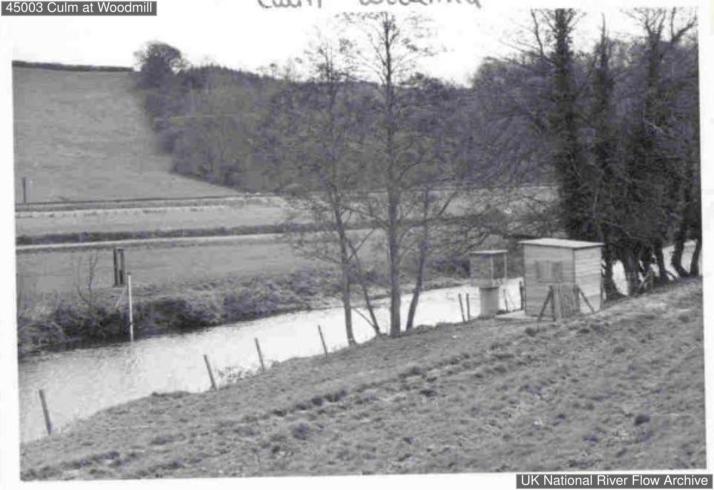

Woodmill site set up in 1960s
